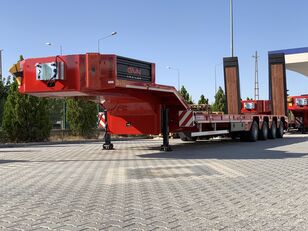

Новий напівпричіп низькорамна платформа GVN TRAILER GVN TRAILER 5 AXLE LOWBED 2022 MODEL ( MANUFACTURER)

5. Wheel Height : 1250 mm
-Loading platform height(Unloaded) : 11400 mm
-Loading platform lenght : 9800 mm included beaver tail
-Total length : 16200 mm
-Total width : 2550 mm + 2x8 sides extensions flags 300+300
-Length of the rear ramp : 3000 mm
-Width of the rear ramp : 750 mm
-Axles group technical capacity : 60000 Kg
-King pin technical capacity : 20000 Kg
-Gross vehicle weight : 80000 Kg
-Empty weight : 13.000 Kg
-Permissible Payload : 67000 Kg
-Technically Payload : 80000 Kg

Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel ST 52.3 A welded by automatic Submerged-Arc processes.Main chassis;Top Flange 20mm,width 150mm; Middle Flange 10mm,Height 500mm, Botton Flange 20mm,width 150mm.Travers are 200 mm and 160 mm height NPI.Side chassis; 300 mm UPE.

Axles Opsional Turkish Brand 5 x 12 Ton axles

Suspensions Air suspensions

Brake System Two line air brake system acting on all wheels

Brake Chambers 2 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers

Electrical system 2x6 pin sockets - 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear
2 tail & stop combined lamps (red)
2 turn signal combined lamps (orange)
1 license lamp (white)

Tires 235x70x17.5 - 245x70x17.5 (Fulda or Sawa or Dunlop or lassa or starmax Brand)

Landing Gear Front: Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity (OMS or GOS TYPE)

Rear Ramp Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic funsion with cable push – button for remote cont.Rear ramps length 3000 mm width 750 mm.

Accessories
-2 x 7 bolt type lashing rings
-2 x Wheel chocks and holders
-2 x 6 sides extensions flags 300 mm + 300 mm
-1 x tool box(under the goose neck)
-2 x tool box
left and right
-1 x tool box(on the goose neck)
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
